Terminal Hardware

The following illustrations show the location of the main terminal features and hardware:

  1. Front-facing camera (not used)
  2. Volume control button
  3. Power button
  4. Color touchscreen
  5. Magnetic stripe reader
  6. Chip card reader
  7. Rear camera/scanner
  8. Battery cover
  9. Speaker
  10. Contactless payment reader/Printer latch
  11. 3.5mm audio port
  12. Micro USB charging port

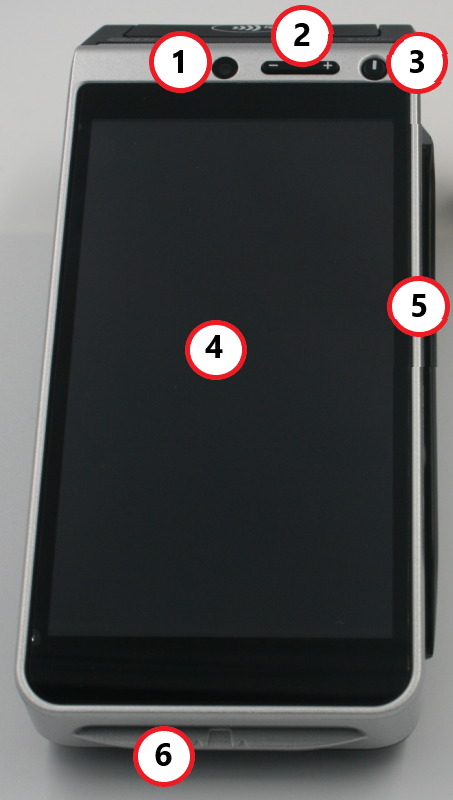

 A920 front

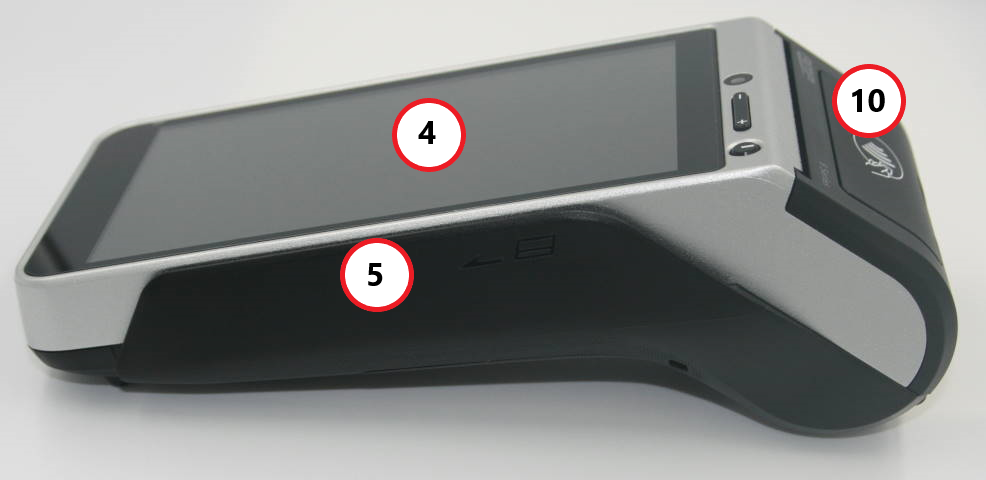

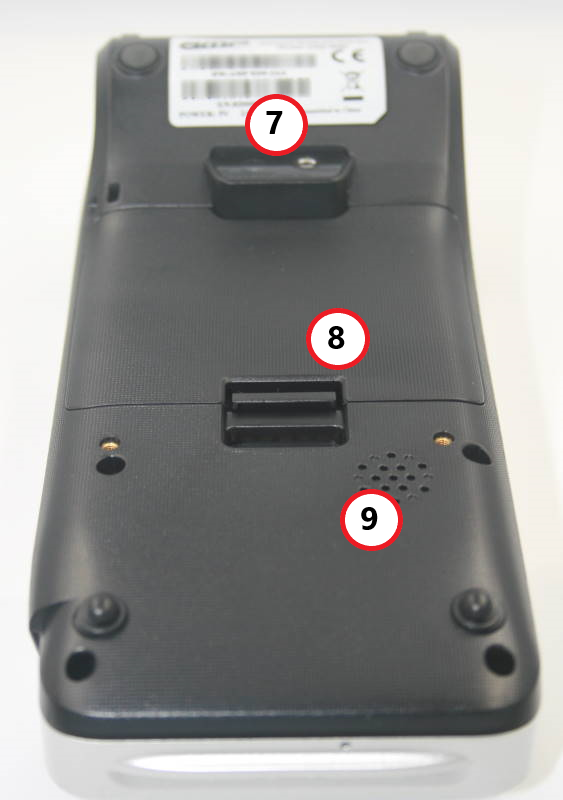

A920 back 		A920 right side

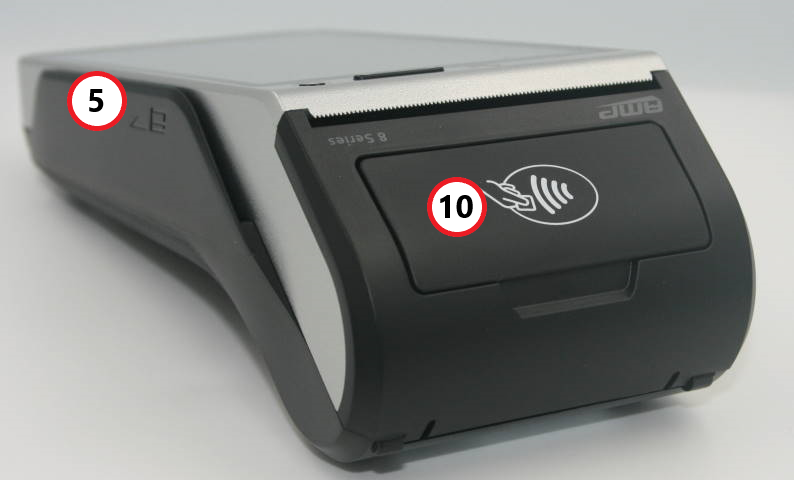

A920 top

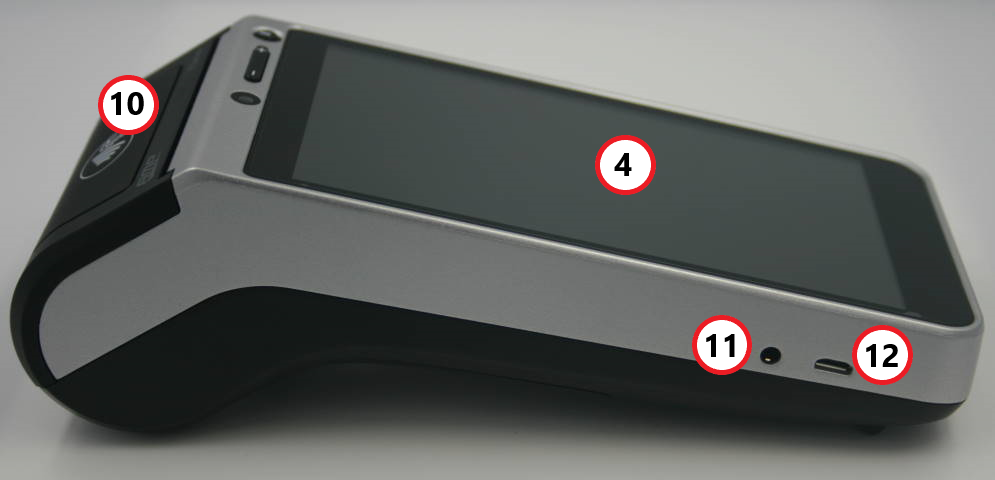

A920 left side
