Connect Terminal to a Vending Device
Due to the many different vending devices available, this guide does not include specific physical installation instructions.
General Installation Guidelines
The following points are some general installation guidelines to consider:
- Use the supplied M4 nuts to secure the mounting bracket’s outermost openings to M4 screws on the inside wall of the vending device.

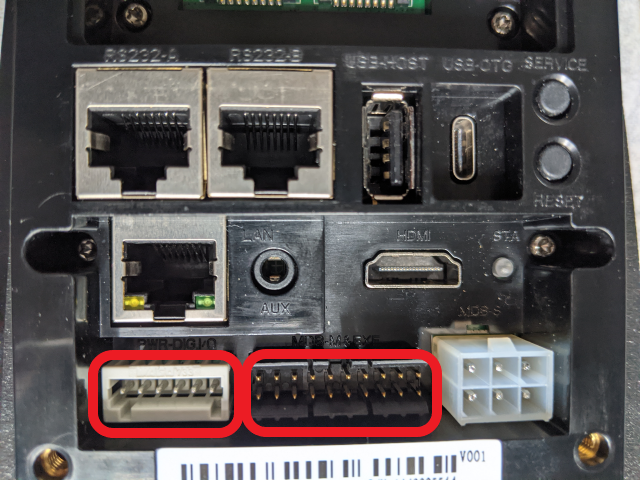

- Prior to fitting the terminal in the vending device, securely connect the vending device’s digital I/O and MDB cables to the appropriate ports on the rear of the terminal.
- If you are using an Ethernet cable to connect the terminal to a network, ensure that the cable is properly seated in the port.
- Secure the terminal to the mounting bracket using the supplied M4 screws.
- Insert the AC adapter’s MDB connector in the MDB-S port.
- If it does not start automatically after you connect the AC power, touch the Gateway PayFacto icon on the main screen to start the application.
- Refer to the PAX IM30 Quick Setup Guide (included in the box with the terminal) for general precautions and operational specifications.
