Connect the Power Cable

Before you can connect the terminal to a vending device, you must connect the power cable, configure the network connections, and configure the software. To access the terminal’s configuration, you must first connect the power cable.



To connect the terminal power cable:

  1. Turn the terminal over.
  2. Insert the AC adapter’s MDB connector in the MDB-S port.

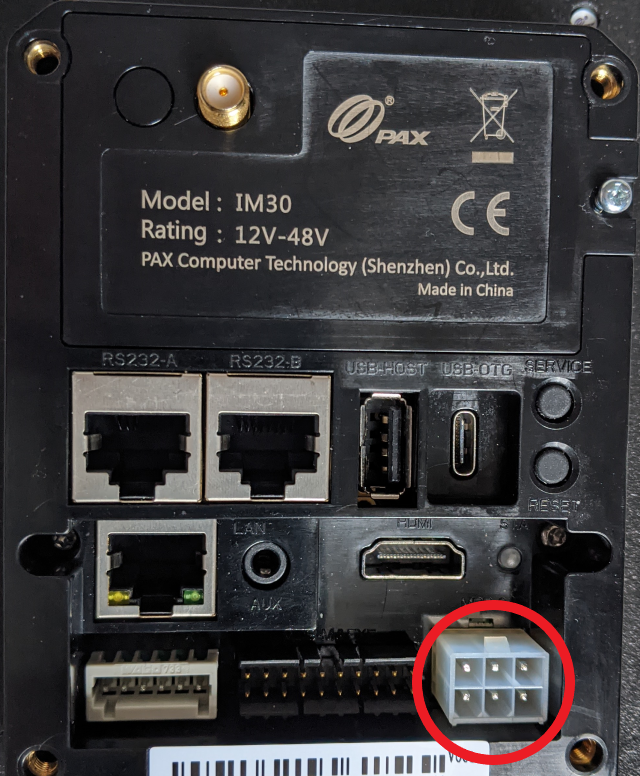

    IM30 power connector
    Note Icon

    NOTE: Although it can only fit one way, make sure the release tab is positioned towards the top of the terminal.

  3. Plug the male end of the AC cord into the AC adapter and plug into an AC outlet.

The terminal powers on, Android starts, and displays the terminal’s main screen.
