Installing the SIM Card

This section explains how to install the SIM card to enable mobile network access on the terminal.



To install the mobile SIM card:

  1. Make sure the terminal is powered off and turn the terminal over.
  2. On the back of the terminal in the middle, use a small Phillips screwdriver to loosen (turn left) the screw that secures the card slot module.

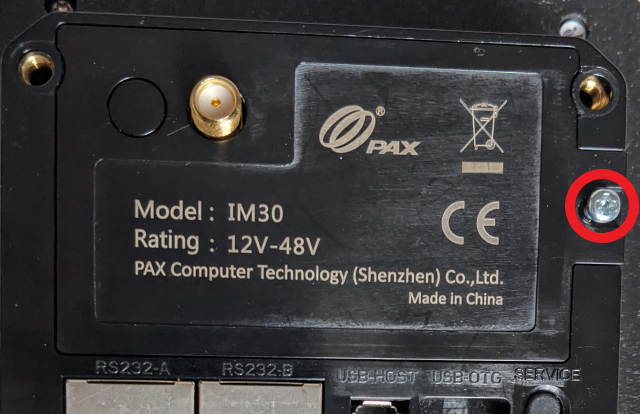

    IM30 SIM card module screw
  3. Lift the card slot module from the terminal.
  4. Locate the SIM slot on the long side of the module.

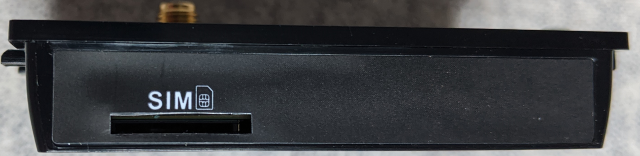

    IM30 SIM card module card slot
  5. Insert the SIM card as illustrated (clipped corner at the top right).

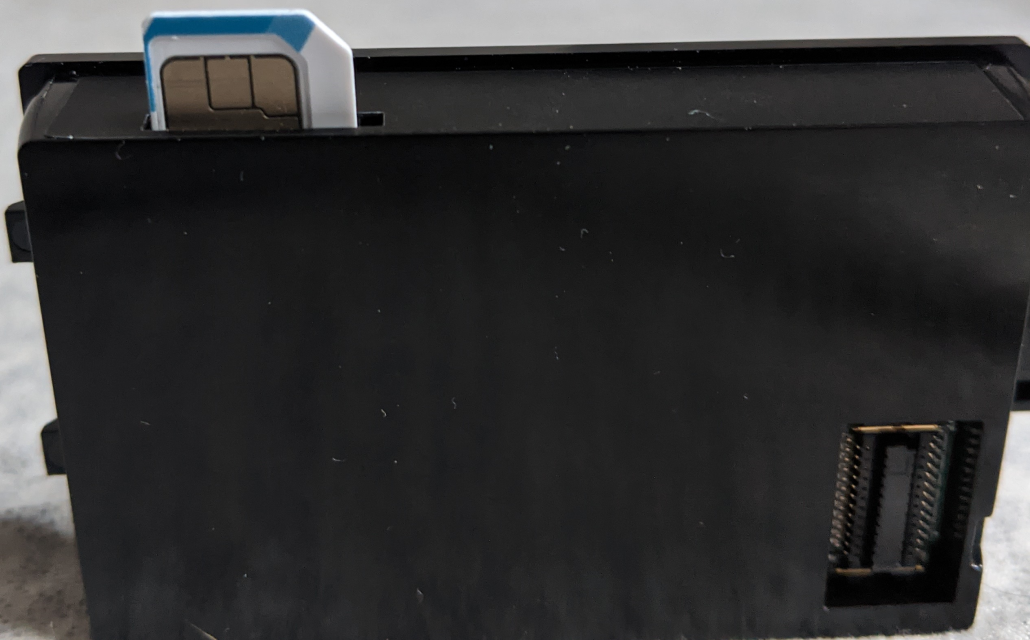

    IM30 SIM card module insert card
  6. Re-install the card slot module and tighten (turn to the right) the screw using a small Phillips screwdriver to secure the module to the terminal.
  7. If necessary, attach the LTE antenna (sold separately) to the threaded connector on the card slot module.

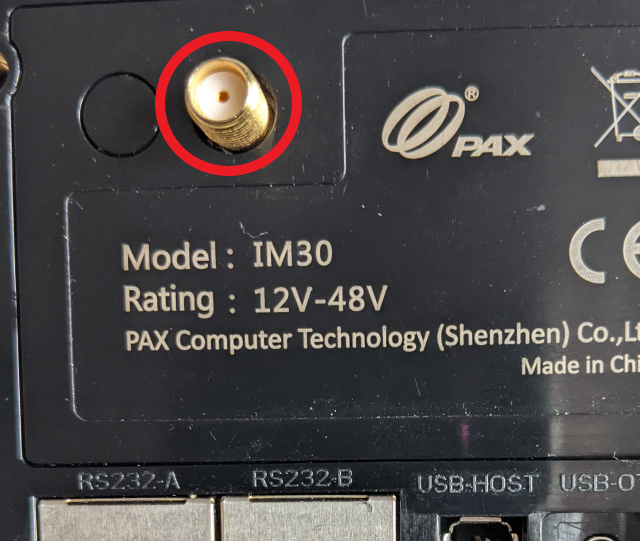

    IM30 SIM card module antenna connector
  8. Re-connect the power cable to power up the terminal.
